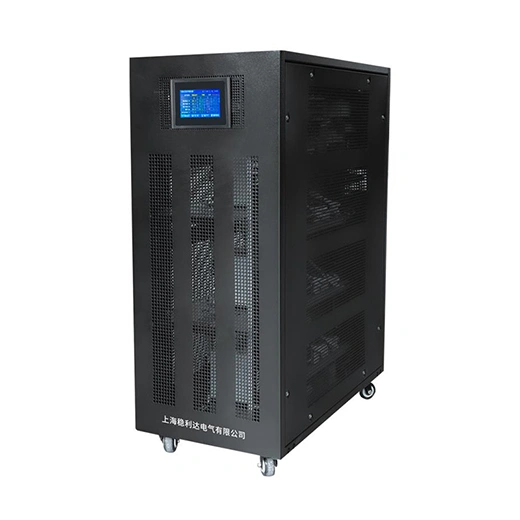

Static Voltage Stabilizer
(Non-Contact Voltage Stabilizer)

Solid-state voltage regulator for maintenance-free voltage stabilization and delivering highly stable output voltage for electrical equipment

  • Rated capacity: three-phase 10–1600 kVA, single-phase 3–50 kVA
  • Phase number: single-phase or three-phase (optional)
  • Input voltage: three-phase, five-wire 380 V (± 15%), single-phase 220 V (± 15 %) (customizable upon request)
  • Output voltage: three-phase 380 V, single-phase 220 V (customizable upon request)
  • Voltage regulation accuracy: adjustable within ± 1 % to ± 5 % (factory default ± 2 %)
  • Operating frequency:50 Hz / 60 Hz
  • Efficiency: ≥ 98 %
  • CE
  • ISO14001
  • ISO9001
  • ISO45001
Request a Quote

Static voltage stabilizers automatically adjust the output voltage according to fluctuations in the input power supply. Their main function is to keep the voltage within a defined range, ensuring that electrical equipment operates safely at its rated level. Unlike servo voltage stabilizers, static models use a solid-state system composed of a compensation transformer, main circuit, and SCR modules controlled by a microprocessor. By using pre-programmed control, static stabilizers adjust the voltage in real time and make precise corrections as needed. Since there are no moving parts, the response is faster and the operation stays stable without the need for maintenance.

Features
  • Static voltage stabilizers respond within milliseconds by using DSP control chips, SCR non-contact switches, and zero-crossing technology. This electronic control allows fast and accurate voltage adjustment without any mechanical components.
  • They regulate voltage dynamically through independent three-phase control, detecting input fluctuations in real time and compensating automatically. This design keeps performance stable even with fully unbalanced loads or inconsistent grid voltage.
  • Their output voltage stays steady and accurate, and the waveform remains clean, which helps connected equipment run smoothly without power fluctuations.
  • These stabilizers operate reliably in environments from –40°C to +50°C and support a wide range of loads, including resistive, inductive, and impact types. Thanks to their non-contact structure, they avoid wear, sparks, and mechanical failure, allowing long-term, maintenance-free use.
  • Each voltage regulating unit includes an LCD touch screen that displays voltage and current data in real time, supports RS485 communication, and provides automatic bypass, delayed start-up, and self-recovery functions for easier monitoring.
  • Multiple protection mechanisms are integrated, including over-voltage, under-voltage, overload, and short-circuit protection, combined with automatic fault detection to improve operational safety.
  • Static voltage stabilizers are compatible with precision and medical equipment such as CT scanners and laboratory instruments. True RMS voltage control eliminates fluctuations while maintaining silent operation with no electromagnetic interference.
  • The compact, environmentally friendly design combines SCR modules, compensation transformers, and main circuits in a smaller structure that reduces size and weight compared with conventional stabilizers. Non-corrosive, non-flammable materials are used to meet modern safety and environmental standards.
Specifications
Product type Three-Phase Static Voltage Stabilizer
(Non-Contact Voltage Stabilizer) 		Single-Phase Static Voltage Stabilizer
(Non-Contact Voltage Stabilizer)
Model ZSBW-#####KVA ZDBW-#####KVA
Rated capacity 10–1600kVA 3–50kVA
Input voltage Three-phase, five-wire 380V (±15%) Single-phase 220V (±15%)
Customizable upon request
Output voltage Three-phase 380V Single-phase 220V
Customizable upon request
Three-phase unbalance Automatic balancing of three-phase output voltage
Voltage regulation accuracy Adjustable within ±1% to ±5% (factory default ±2%)
Delayed output Voltage output after stabilization to avoid equipment impact
Operating frequency 50Hz/60Hz
Withstand voltage 2000V for 1 minute without breakdown
Waveform distortion No additional waveform distortion (static)
Efficiency ≥98%
Insulation resistance ≥2MΩ
Response time Fast response: 20-100ms
Overload capacity 5 times the rated current for 1 second
Protection functions Over-voltage, under-voltage, overload, over-current, short-circuit, and bypass protection Phase loss and phase-sequence protection for three-phase models
Human-machine interface Digital display for operating status, fault indication, parameter settings, data query, and real-time display of voltage and current
Voltage regulation mode
  • Simultaneous regulation: collects and averages three-phase voltages (A, B, C) to improve phase balance
  • Independent phase regulation: independently regulates each phase voltage for unbalanced or single-phase loads
  • Automatic analysis: the system automatically determines the optimal regulation mode
Operating environment Ambient temperature -15℃ to +45℃
Altitude ≤2000m
Relative humidity ≤90%
Installation conditions Free from gases, steam, chemical precipitates, dust, and other explosive or corrosive media that may affect insulation performance
Storage temperature -40℃ to +70℃
Enclosure protection level IP20 as standard (higher protection levels are customizable upon request)
Standards compliance YD/T1270-200
Main Components

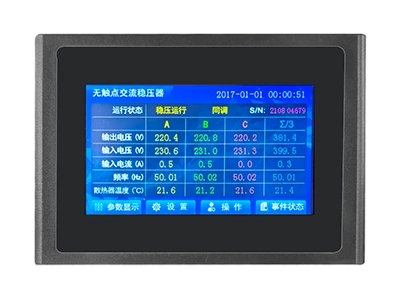

LCD Touch Screen Controller LCD Touch Screen Controller

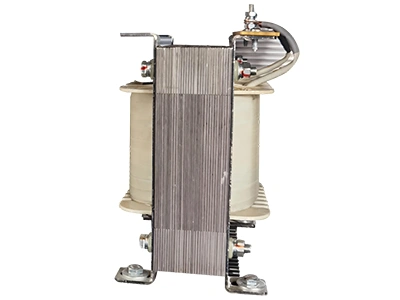

Compensation Transformer Compensation Transformer

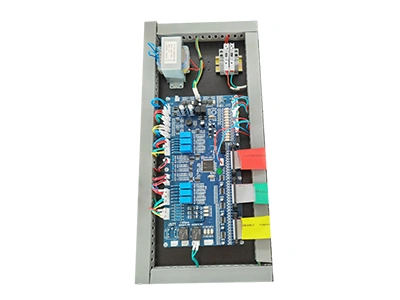

Control Module Control Module
Applications
  • Industrial EquipmentIndustrial Equipment
    Ideal for workshops, manufacturing lines, and automated production systems. Provides steady power for CNC machines, air compressors, laser cutters, and metal processing equipment to keep operations precise and stable.
  • Heavy MachineryHeavy Machinery
    Used for equipment with frequent impact loads or voltage fluctuations, such as cranes, lifting systems, and laser cutting machines. Ensures stable voltage for consistent power and safe operation.
  • Medical and Laboratory EquipmentMedical and Laboratory Equipment
    Ideal for sensitive instruments like MRI scanners, CT machines, spectrometers, and electron microscopes that need stable voltage to avoid interference and maintain precision.
  • Public InfrastructurePublic Infrastructure
    Suitable for communication base stations, radio and TV transmitters where stable voltage and fast response are needed to reduce interference and keep systems running continuously.
  • Transportation SystemsTransportation Systems
    Used in railway signaling, metro power supply, and highway or tunnel monitoring systems that require fast voltage response and reliable operation.
  • Voltage-Unstable LocationsVoltage-Unstable Locations
    Ideal for places such as shopping centers, hotels, HVAC systems, lighting networks, elevators, and wineries where voltage fluctuations can affect equipment performance.
  • Remote and Special LocationsRemote and Special Locations
    Used in areas such as rural power supply, unmanned communication stations, and weather monitoring sites that need stable voltage for reliable operation.
  • Low-Noise EnvironmentsLow-Noise Environments
    Suitable for locations sensitive to sound or interference, including laboratories and aerospace facilities.
  • Challenging ConditionsChallenging Conditions
    Can be installed in environments with high humidity, dust, vibration, or salt exposure that could otherwise damage electrical components.
