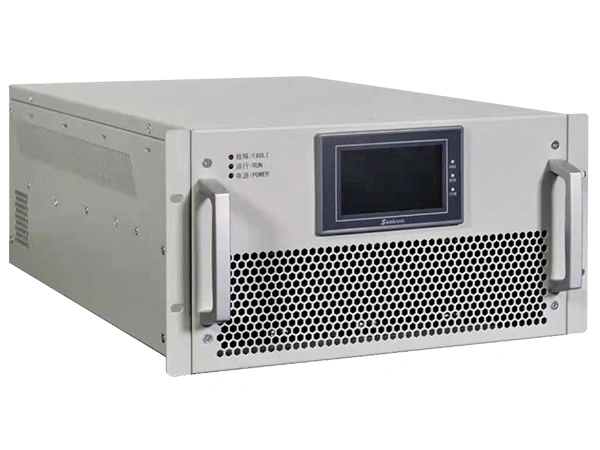

Static Var Generator (SVG), Low Voltage

Electronic reactive power compensation device for enhancing power quality by dynamically compensating reactive power

  • Rated capacity: 30 kVAr / 50 kVAr / 50 kVAr /100 kVAr
  • Operating voltage: Selectable 400 ± 20% / 220 ± 15% / 690 ± 15% / 750 ± 15% / 800 ± 15%
  • Operating frequency: 50 / 60 Hz ± 5 Hz
  • Reactive compensation: -100% to +100% (power factor is adjustable within the range)
  • Ambient temperature: -10℃ to +45℃
  • Enclosure protection level: IP20 as standard (higher protection levels are customizable upon request)
Request a Quote

A Static Var Generator (SVG) helps keep voltage stable and power quality consistent by managing reactive power in real time. It adjusts automatically to balance the power factor and reduces energy losses, creating a more reliable and efficient electrical system. Unlike traditional capacitor banks, an SVG reacts quickly to sudden changes in load, ensuring smooth and accurate compensation. It’s widely used in factories, commercial buildings, and data centers where a steady and dependable power supply is essential.

Features

Below are low-voltage static var generators (SVG) main performance highlights that make them an effective solution for modern power systems:

  • Respond within milliseconds to adjust reactive power in real time, maintaining voltage stability and minimizing flicker caused by sudden load changes.
  • Continuously track reactive power fluctuations with high accuracy, improving the power factor and reducing unnecessary energy losses.
  • They adapt automatically to load variations, optimizing power distribution and supporting steady system performance.
  • Compensate both inductive and capacitive loads at the same time, overcoming the limitations of traditional capacitor-based systems.
  • Reduce harmonic interference and can include dedicated modules for filtering specific harmonics to improve power quality.
  • Support voltage stability by regulating reactive power flow, preventing equipment damage from voltage spikes or drops.
  • Thanks to their compact design and low internal losses, they are easy to install and simple to maintain, which helps reduce downtime and overall maintenance work.
  • Avoid risks such as capacitor degradation, resonance, or sparking, ensuring stable operation even under demanding conditions.
  • Enhance grid performance with integrated harmonic filtering and voltage support functions, improving system reliability.
  • Balance three-phase systems by controlling neutral line current, effectively addressing unbalanced load issues.
  • Use active damping control to prevent harmonic amplification that can occur with conventional LC filters.
  • Offer high conversion efficiency and modular layouts available in wall-mounted or rack-mounted versions, supporting N+1 redundancy for uninterrupted operation.
Specifications
General Product type Static Var Generator (SVG)
Rated capacity 30kVAr 50kVAr 75kVAr 100kVAr
Operating voltage Selectable
1. 400±20%
2. 220±15%
3. 690±15%
4. 750±15%
5. 800±15%
Operating frequency 50/60Hz±5Hz
Power factor -1 to +1
Wiring method Three-phase, three-wire
Current sampling 5A (CT:100/5– 10000/5)
Current sampling position Selectable
1. Load side
2. Grid side
Parallel operation Unlimited number of units
Cooling method Intelligent forced air cooling
Reactive compensation -100% to +100% (power factor is adjustable within the range)
Instantaneous response time < 100μs
Full response time < 10ms
Noise level < 65dB
Protection functions Self-diagnosis and multiple protection features including over-voltage, under-voltage, frequency anomaly, over-temperature, over-current, short-circuit, phase-loss, DC bus over-voltage, DC bus under-voltage, IGBT fault, and inverter bridge reverse protection
Communication & Control Extended functions 10-channel TSC interface, capable of operating in combination with TSC/TSF
Communication interface RS485 port
Communication protocol Selectable
1. Electricity master protocol
2. Modbus protocol 3. TCP/IP protocol
Remote control Supported (all parameters can be configured through the host computer)
Display information Displays grid parameters such as voltage, current, power, and harmonics
Monitoring method Selectable
1. Independent module monitoring
2. Centralized module monitoring
Operating environment Ambient temperature -10℃ to +45℃
Storage temperature -40℃ to +65℃
Relative humidity ≤95%, non-condensing
Altitude ≤1500m (for every 100m above 1500m, rated power decreases by 1%)
Enclosure protection level IP20 as standard (higher protection levels are customizable upon request)
Installation Selectable
1. Wall-mounted (modular)
2. Rack-mounted (modular) 3. Cabinet type (integrated)
Wiring method Selectable
1. Bottom entry
2. Top entry
